LOTOS LTP5500DCNC Supreme Non-Touch Pilot Arc CNC Enabled Digital Plasma Cutter THC Torch Height Control Enabled, Dual Voltage 110V/220V, 3/5 inch Clean Cut, Brown
Couldn't load pickup availability
Have a question? Ask an expert on (408)-739-2329

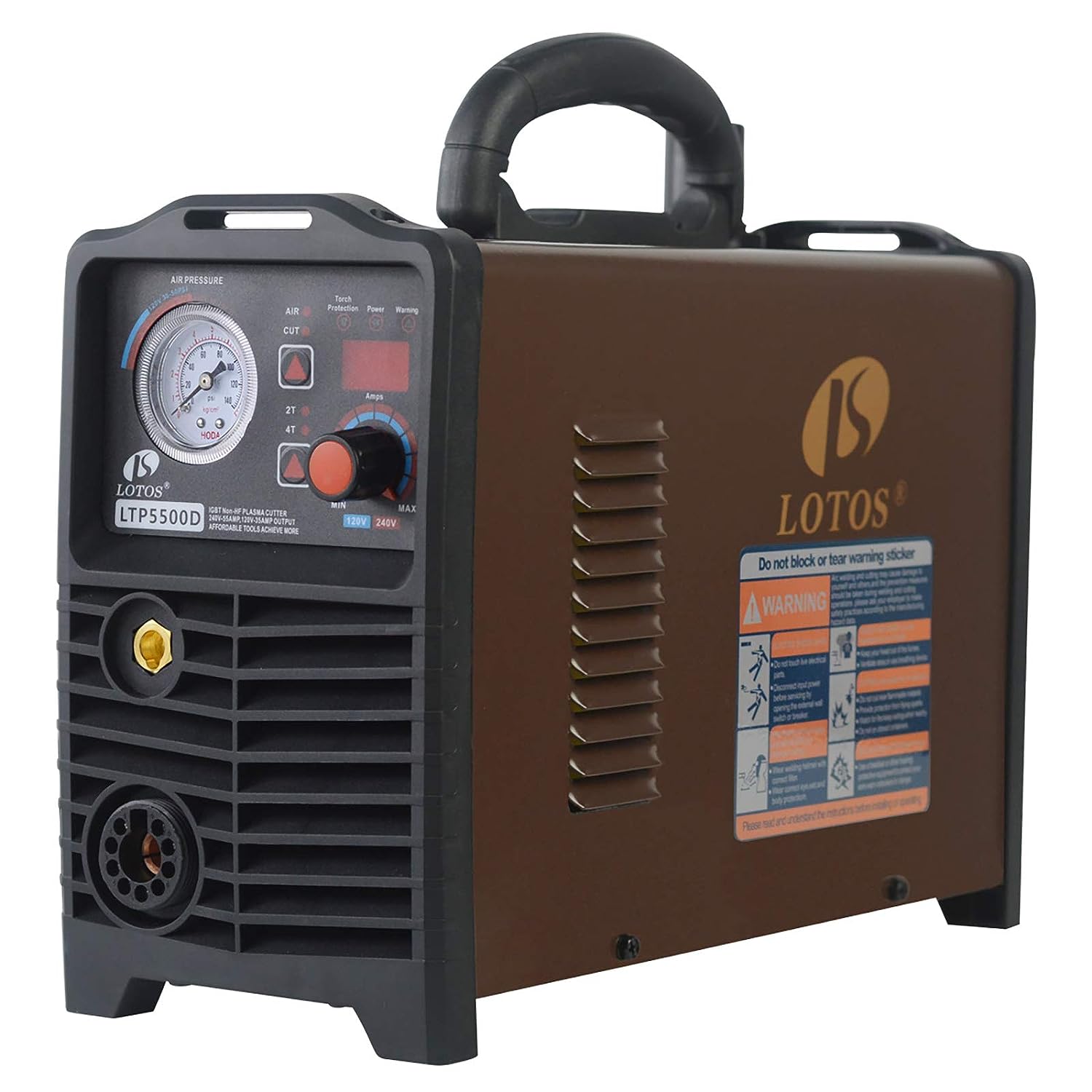

- ★ PORTABLE and POWERFUL--The LTP5500D can easily cut 3/5” (15 mm) metal with ultimate portability weighing only 15lbs; The LTP5500D is an excellent choice for home DIY jobs and light-duty small business projects.
- ★ Non-HF--Non-HF Blowback Start, there is no HF interference.

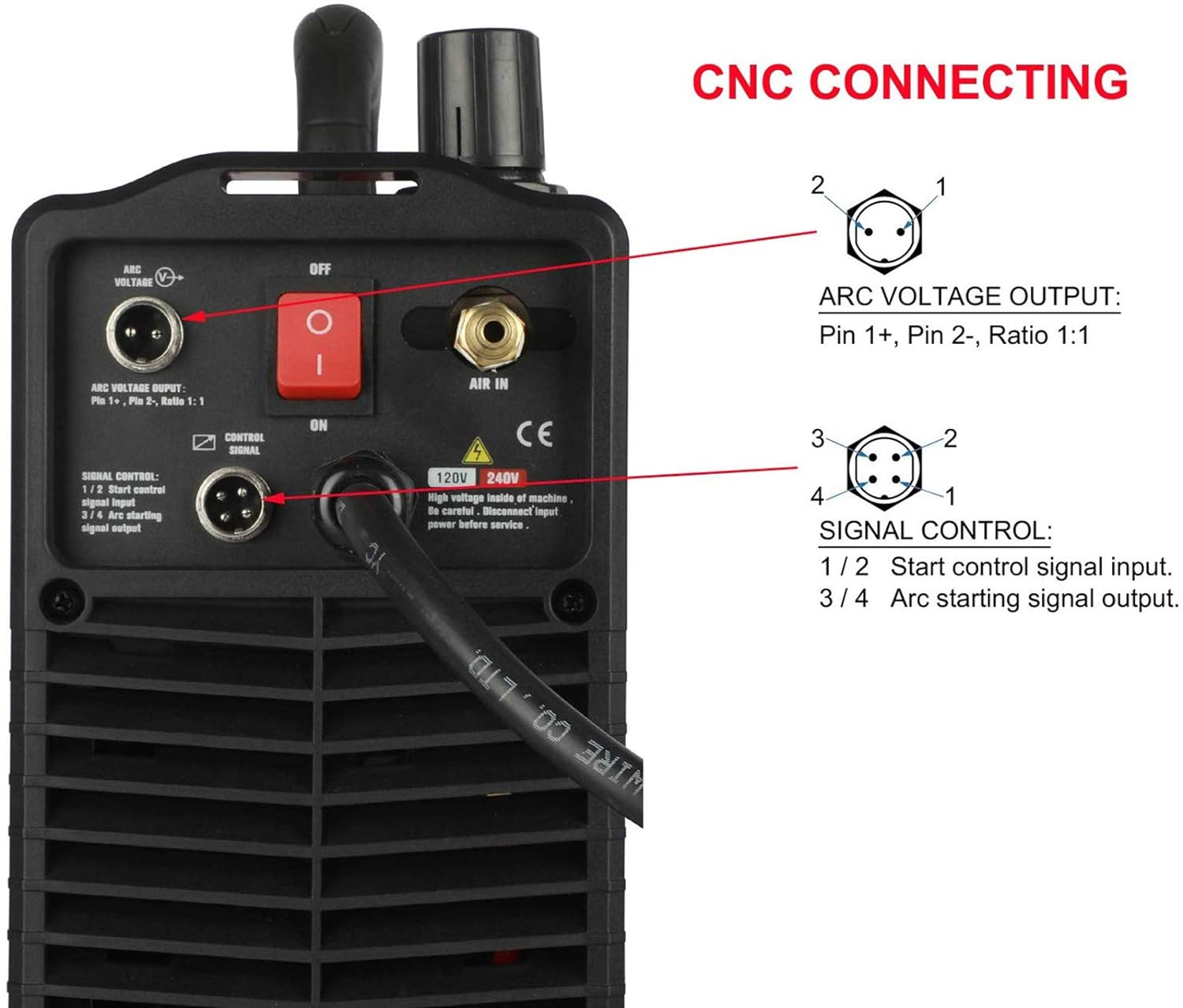

- ★ CNC ENABLED: Pre-installed CNC Interface with THC (Torch Height Controller) signal output. Non-HF Blowback Start, there is no HF interference on your CNC computer.

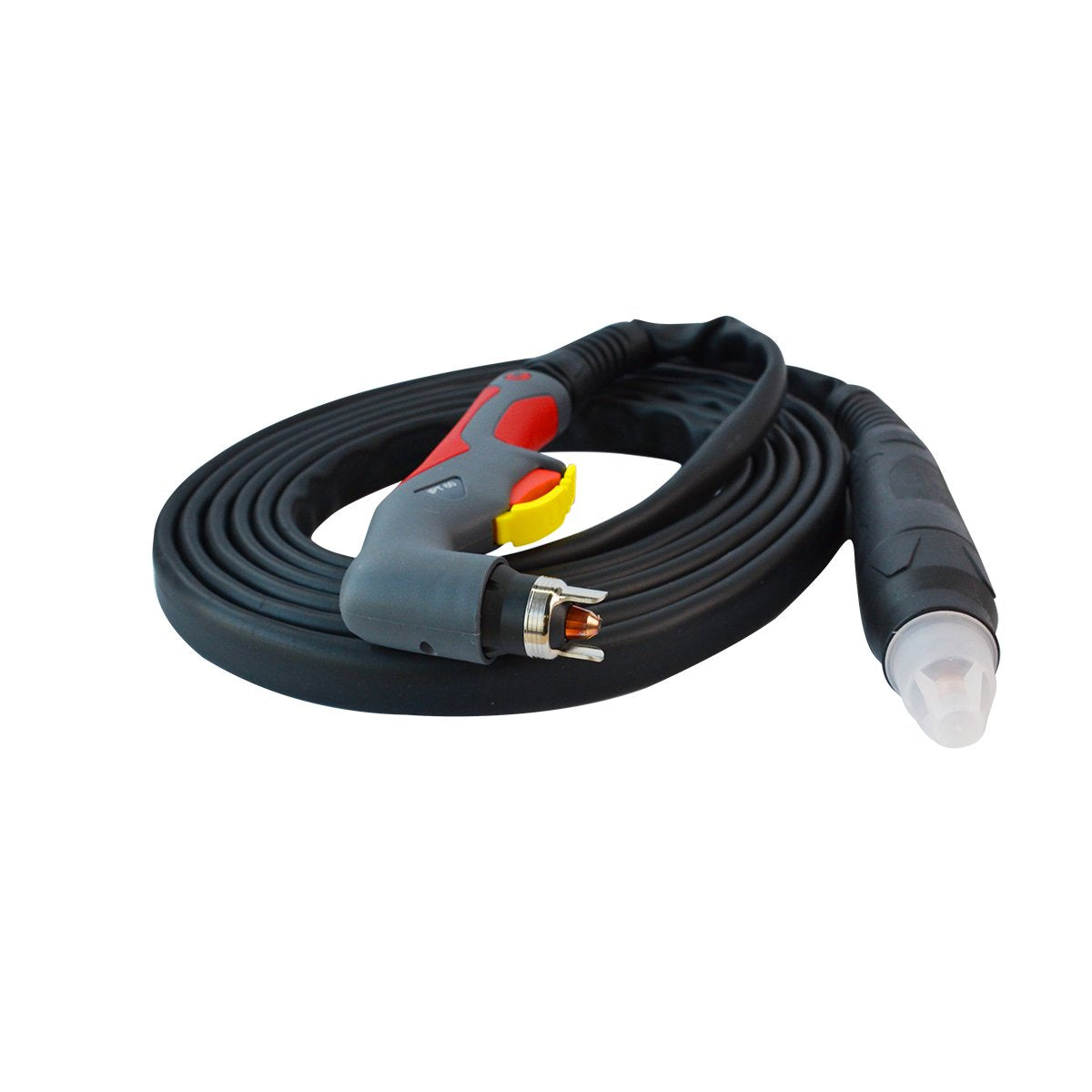

- ★ SETUP WITHIN 1 MIN--The pre-installed NPT 1/4” industry type D plug and air filter regulator allows you to quickly connect to your air compressor by using the stand coupler existing on your air compressor. The Non-HF start 14ft torch with a central connector saves you time to connect the torch to your plasma cutter. The whole machine can be set up quickly within 1 minute.

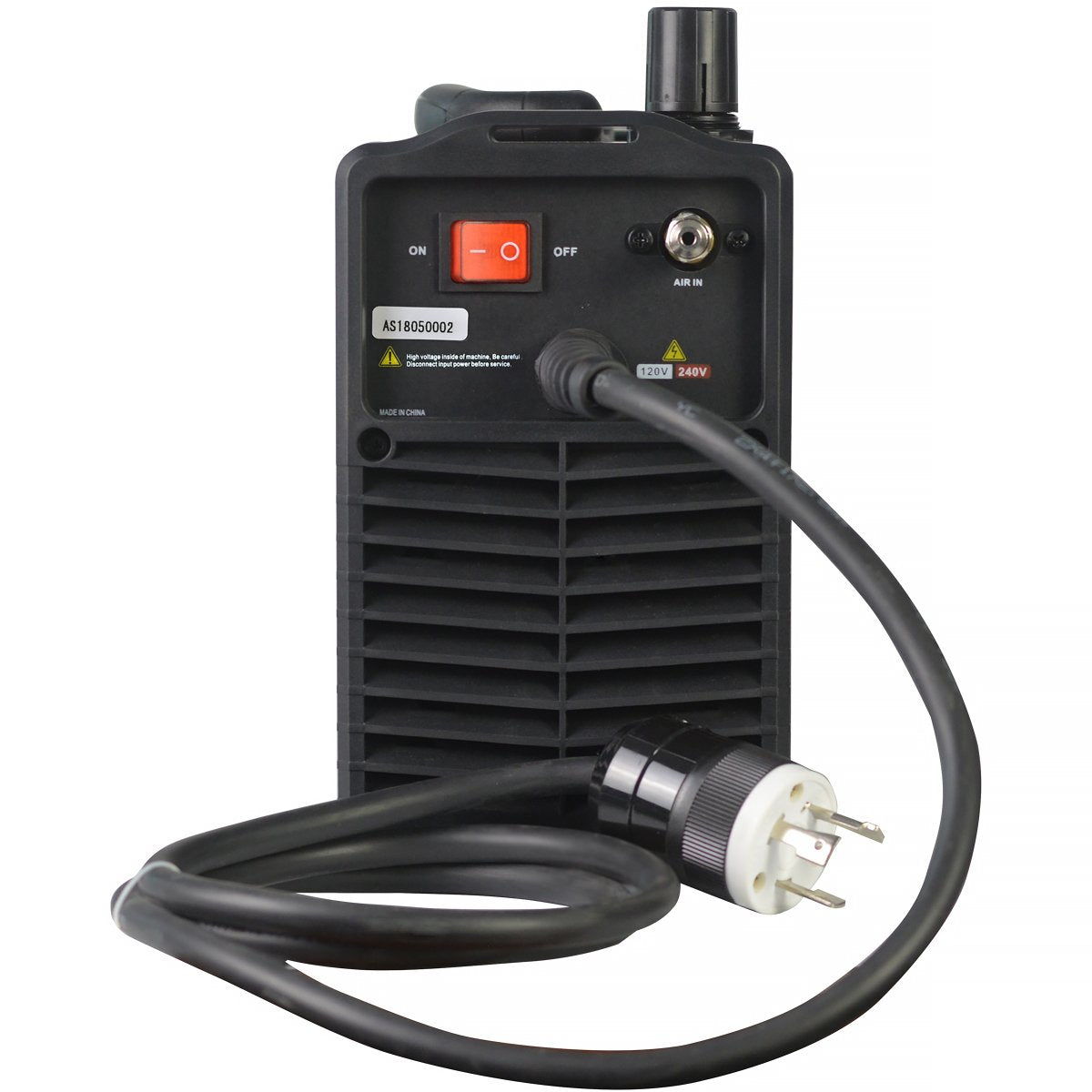

- ★ INPUT: Automatic Dual Voltage 110~125V or 215~245V. Fully Output Circuit Breaker Requirement: 110V @ 50A and 220V @ 40A. Air Compressor Requirement: 70 PSI @ 4.0SCFM.
- ★ OUTPUT: 20-55 A DC output, 3/5” ideal clean cut, and 1” maximum severance cut under 220/240V. 20-35A DC output, 3/8" ideal clean cut, and 1/2" maximum severance cut under 110/120V.
- ★ SUITABLE CUTTING--for Stainless Steel, Alloy Steel, Mild Steel, Copper, Aluminum, etc. Uses non-hazardous compressed air to cut, safely and at a low cost.
- ★ BUY WITH CONFIDENCE: We offer 30 day refund and a 3-YEARS Limited Warranty: including 1 Year NEW Replacement Warranty.
- ★ US-BASED CUSTOMER CARE & SUPPORT TEAM: please feel free to contact us by phone or email, we always stand Back on Our Products. Please submit the registration form on our website.
★ Free continental US shipping: All shipments made within the continental US (excluding Alaska, Hawaii and Puerto Rico) are considered domestic and eligible for complimentary shipping.
★ BUY WITH CONFIDENCE: We offer 30 days refund and a 3-YEARS Limited Warranty: include 1 Year NEW Replacement Warranty.
Customer Reviews
I had a Red LTPDC2000 multi process with the plasma that I used heavily for about 4 years. I had no complaints and I actually sold it to a friend who has been using it for about a year. I bought the LTP5500DCNC to use with a plasma table with THC and it cuts better/cleaner than the one I got rid of. There is a wiring diagram in the book, I have locking L14-50R 50amp locking receptacles in my home hobby shop so I just took the end that came on the cable off and added a locking L14-50P plug. Cost me about the same as the adapter and it plugs into a 6ga extension cord I use with my smaller welders to move them around or use them outside.
I’ve been using the LTP5500 CNC cutter on my Langmuir Pro table for about a year and a half without any problems. I’m using a machine torch and consumables from Plasmadyn so I don’t know about the Lotos torch and consumables. It was easy to hook up to the Langmuir electronics. Don’t listen to Langmuir saying that the 5500cnc
won’t work,it works great.
I was disappointed that the plug was neither the standard 120 volt or the welding 240 volt. I had to buy an adapter separately which the website description did not prepare me for.
