LOTOS LTP5505D 55Amp Non-Touch Pilot Arc Plasma Cutter Machine with Surface Rust Removal Mode, 5/8" Clean Cut, Dual Voltage 110V/120V or 220V/240V, Brown

Name: LOTOS LTP5505D 55Amp Non-Touch Pilot Arc Plasma Cutter Machine with Surface Rust Removal Mode, 5/8" Clean Cut, Dual Voltage 110V/120V or 220V/240V, Brown
Brand: LOTOS Plasma Cutters & Welders
SKU: LTP5000D
Price: 249.98 USD
Availability: InStock
Rating: 4.8 (11 reviews)

$249.98

-37% ~~$399.00~~ $249.98 SAVE 37%

Product variants

Have a question? Ask an expert on (408)-739-2329

Power Upgraded, Rust-Ready – Meet the All-New LOTOS LTP5505D

Take your metalworking to the next level with the LOTOS LTP5505D 55-Amp Plasma Cutter. Engineered with our newly upgraded PCB board and an advanced torch design, this machine delivers a remarkable 25% increase in cutting power output compared to standard cutters.

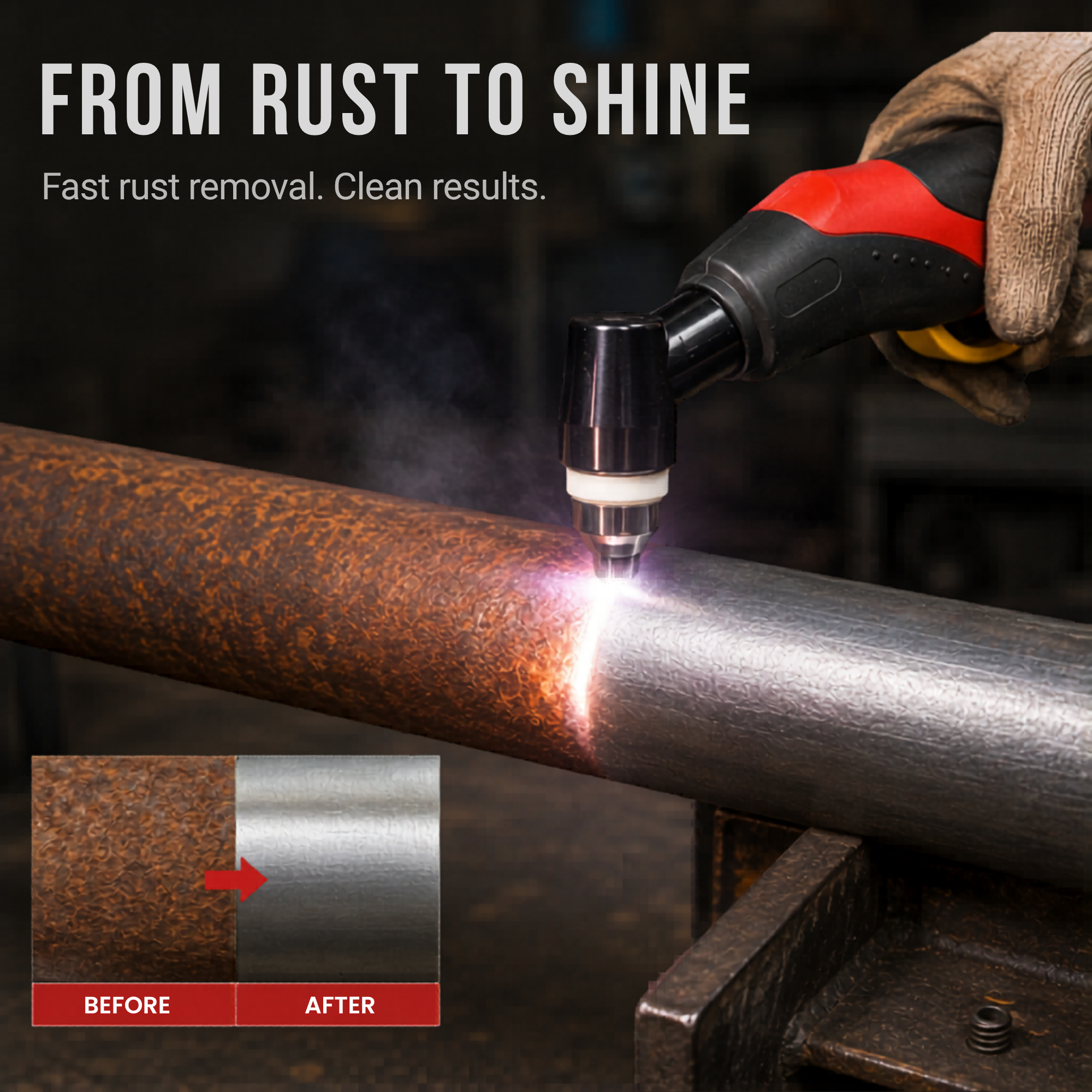

Now featuring a specialized Surface Rust Removal Mode, the LTP5505D allows you to slice through dirty, painted, or heavily rusted metals instantly without any pre-sanding or preparation. Whether you are a professional fabricator or a DIY enthusiast, it ensures high-precision cuts with smooth, fine lines every time.

Key Features

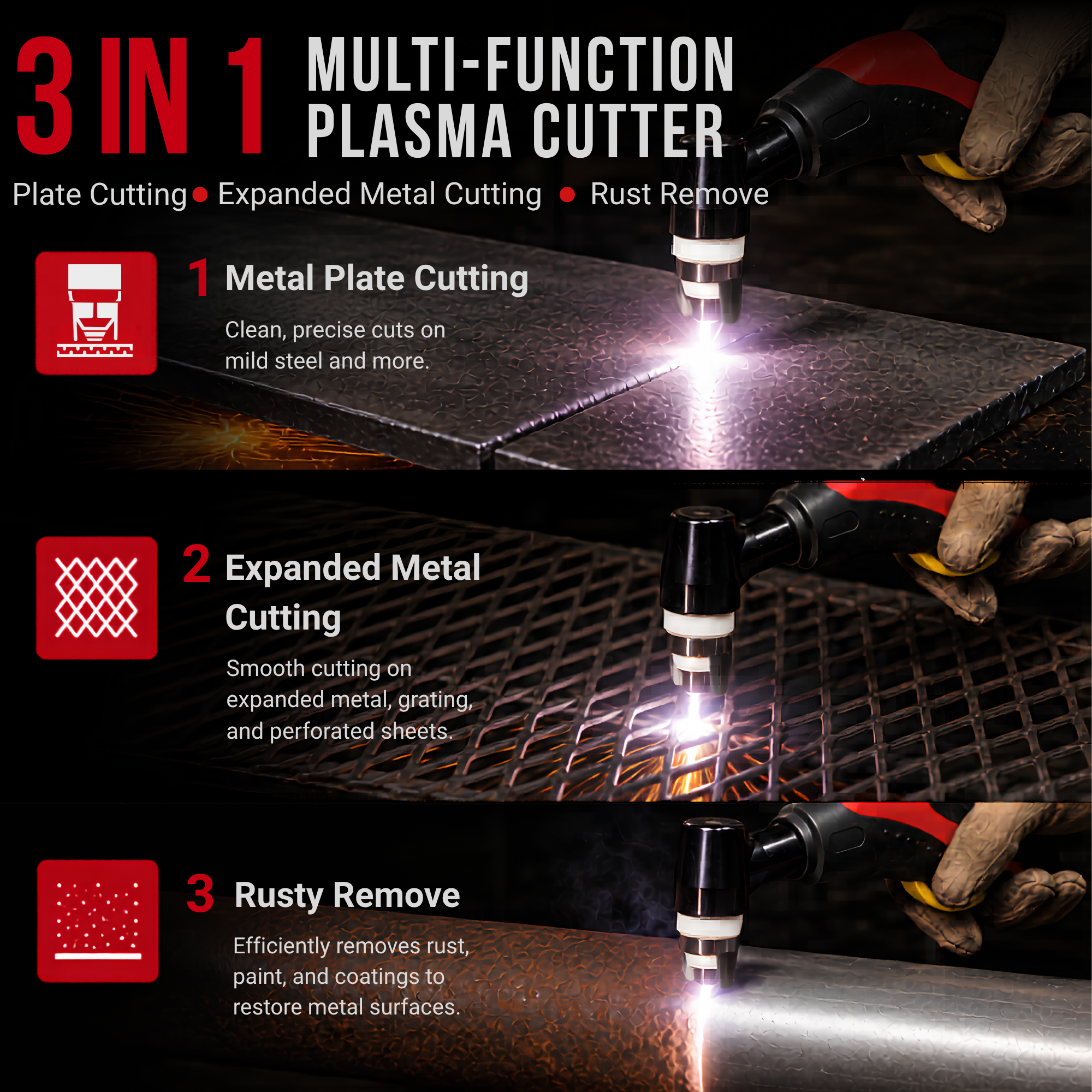

★ Advanced Surface Rust Removal Mode (3-in-1 Capability): Optimized for solid plates, expanded metal, and rusty steel. Skip the tedious prep work—this machine easily cuts through rough, painted, or heavily weathered surfaces with absolute ease.
★ Non-Touch Pilot Arc Technology: The advanced pilot arc allows the torch to ignite and cut without directly touching the metal workpiece. This significantly reduces dross/slag generation and drastically extends the lifespan of your consumables.

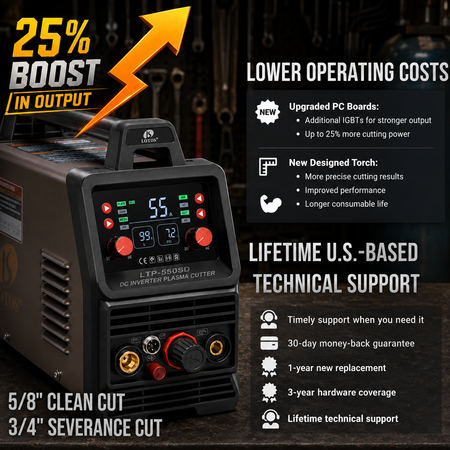

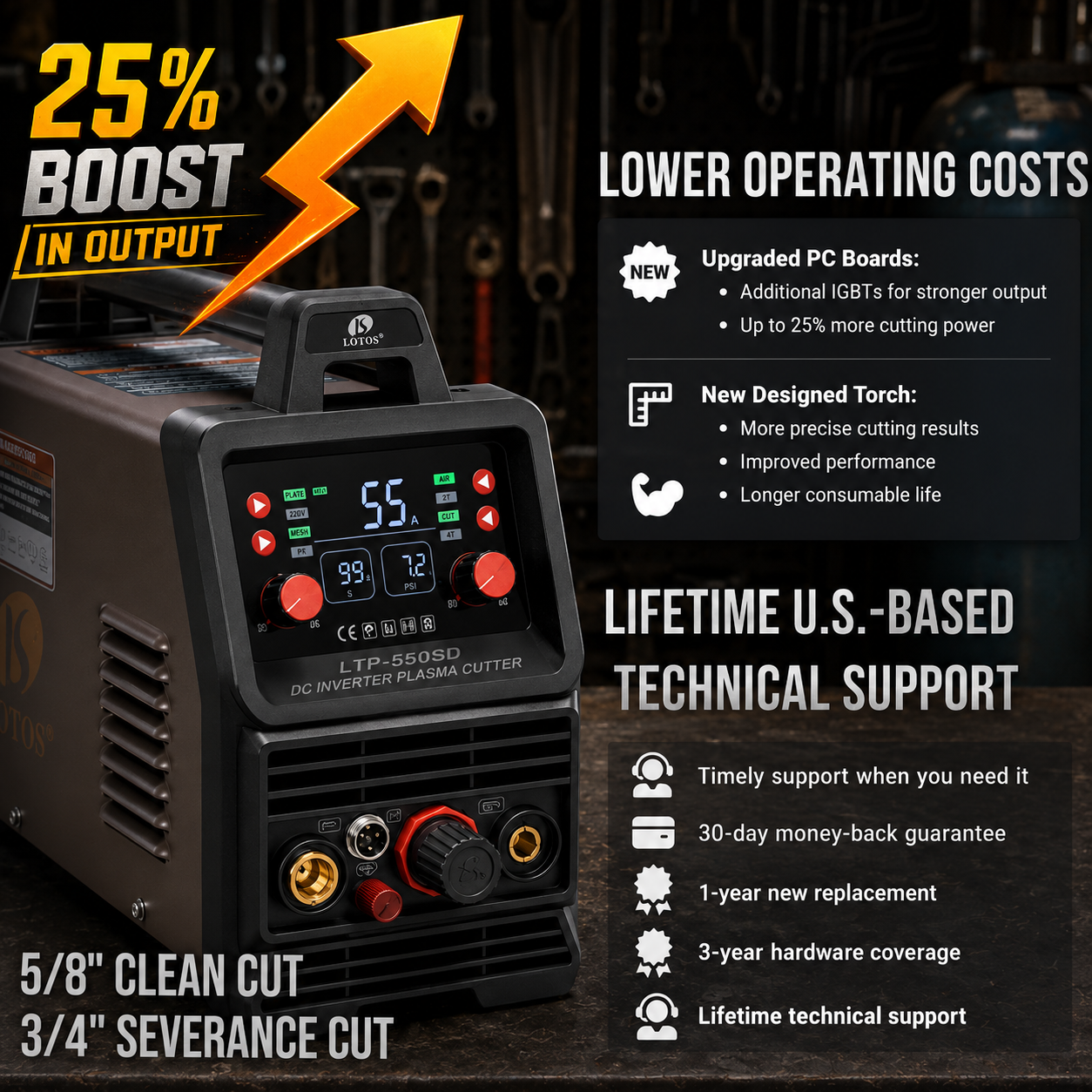

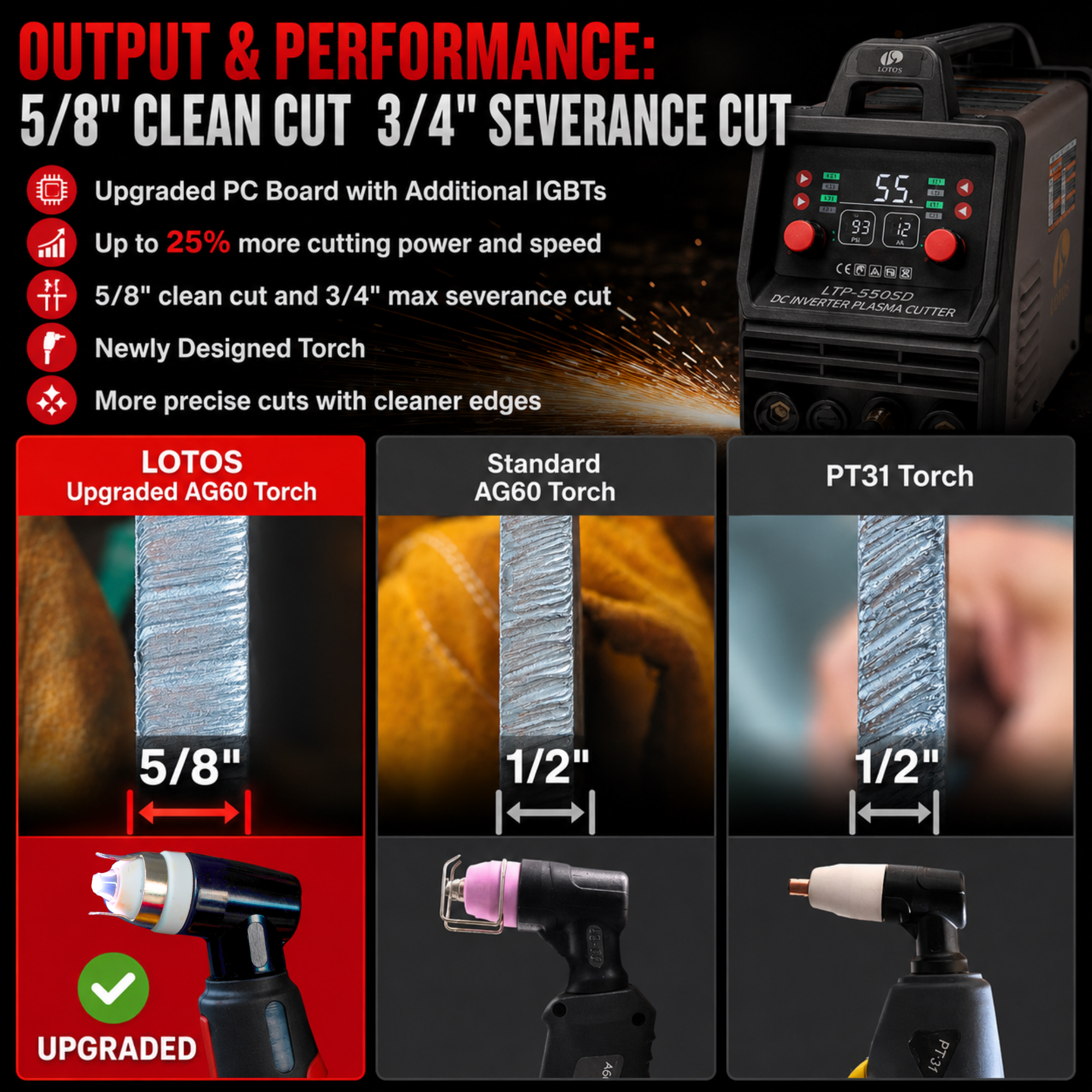

★ Next-Gen Power Boost (25% More Power): Enhanced with additional premium IGBTs on the newly upgraded LOTOS PCB board and torch. Experience unmatched efficiency, stable arc delivery, and accelerated cutting speeds.

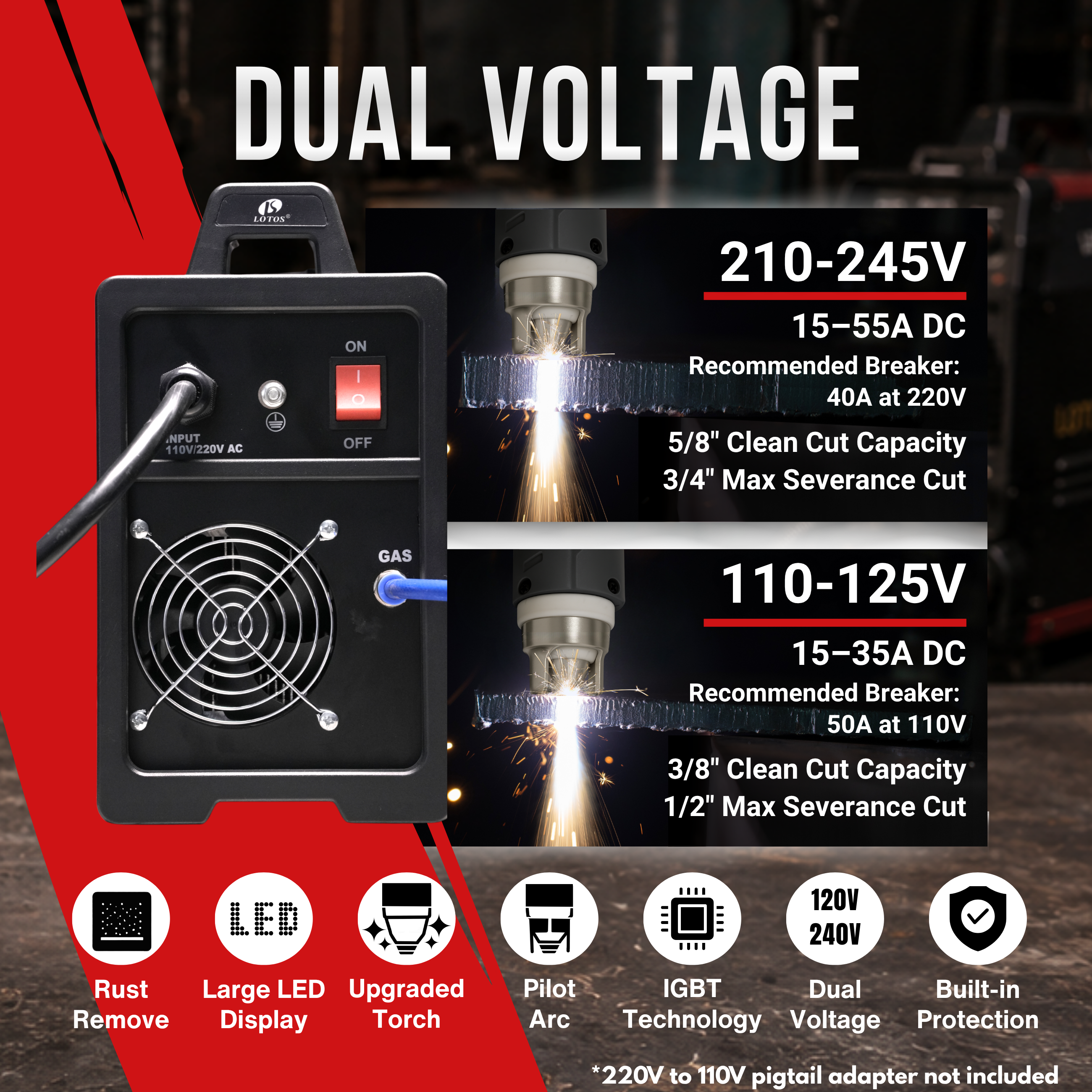

★ Dual Voltage Capability: Automatic dual-voltage auto-sensing runs seamlessly on 110V/120V 50/60Hz or 220V/240V 50/60Hz power sources.
★ 1-Minute Effortless Setup: Features a pre-installed NPT 1/4” industry-type D plug and an advanced front-mounted air filter regulator for precise pressure adjustments. Connect to your air compressor in under a minute with a 100% Air Leakage-Free Guarantee.

Technical Specifications

Feature	220V / 240V Performance	110V / 120V Performance
Output Current	20A - 55A DC	20A - 35A DC
Ideal Clean Cut	5/8" (16 mm)	3/8" (10 mm)
Max Severance Cut	3/4" (19 mm)	1/2" (12 mm)
Duty Cycle @ 40°C	60% @ 55A / 100% @ 43A	60% @ 35A
Cutting Materials	Stainless Steel, Alloy Steel, Mild Steel, Copper, Aluminum, etc.

What's in the Box?

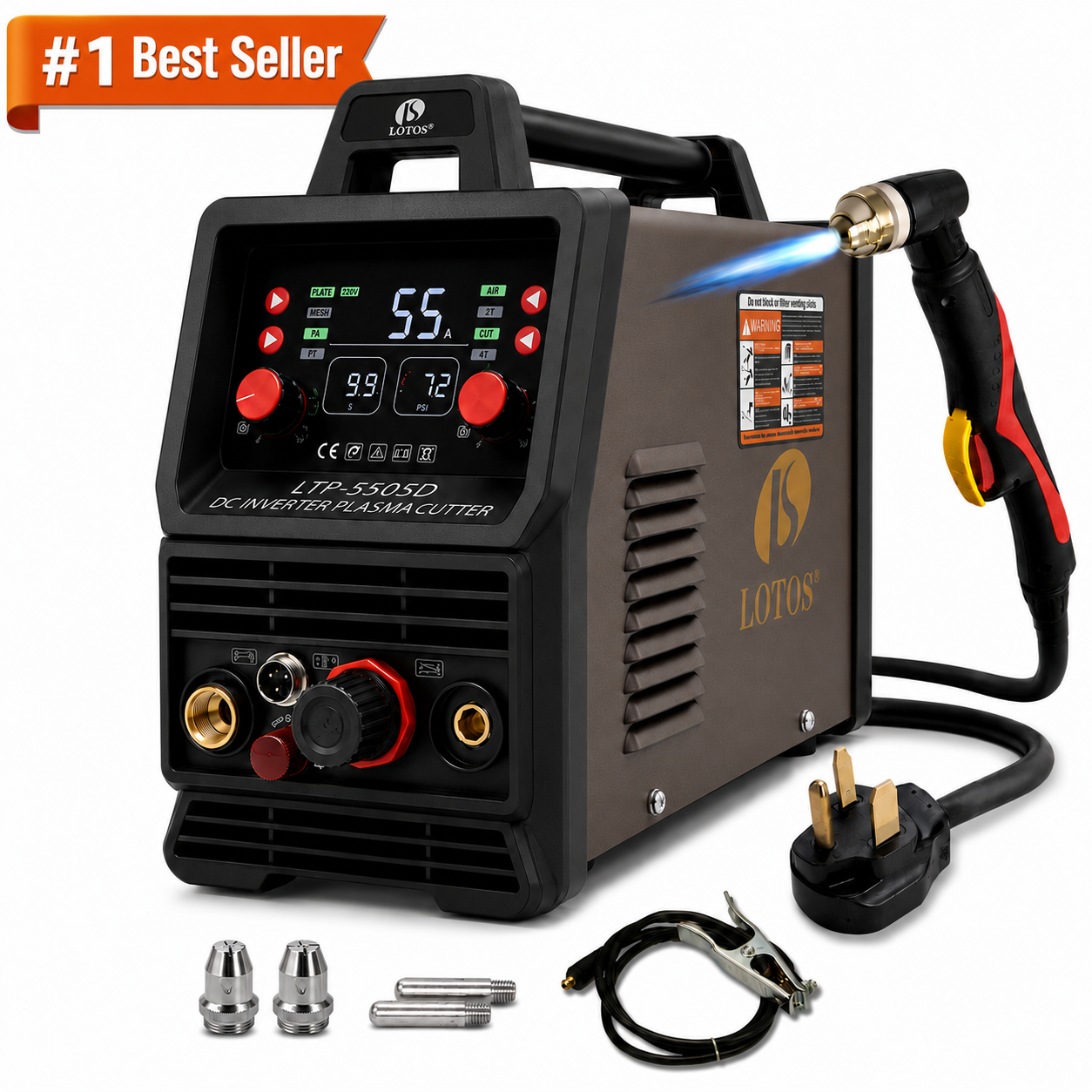

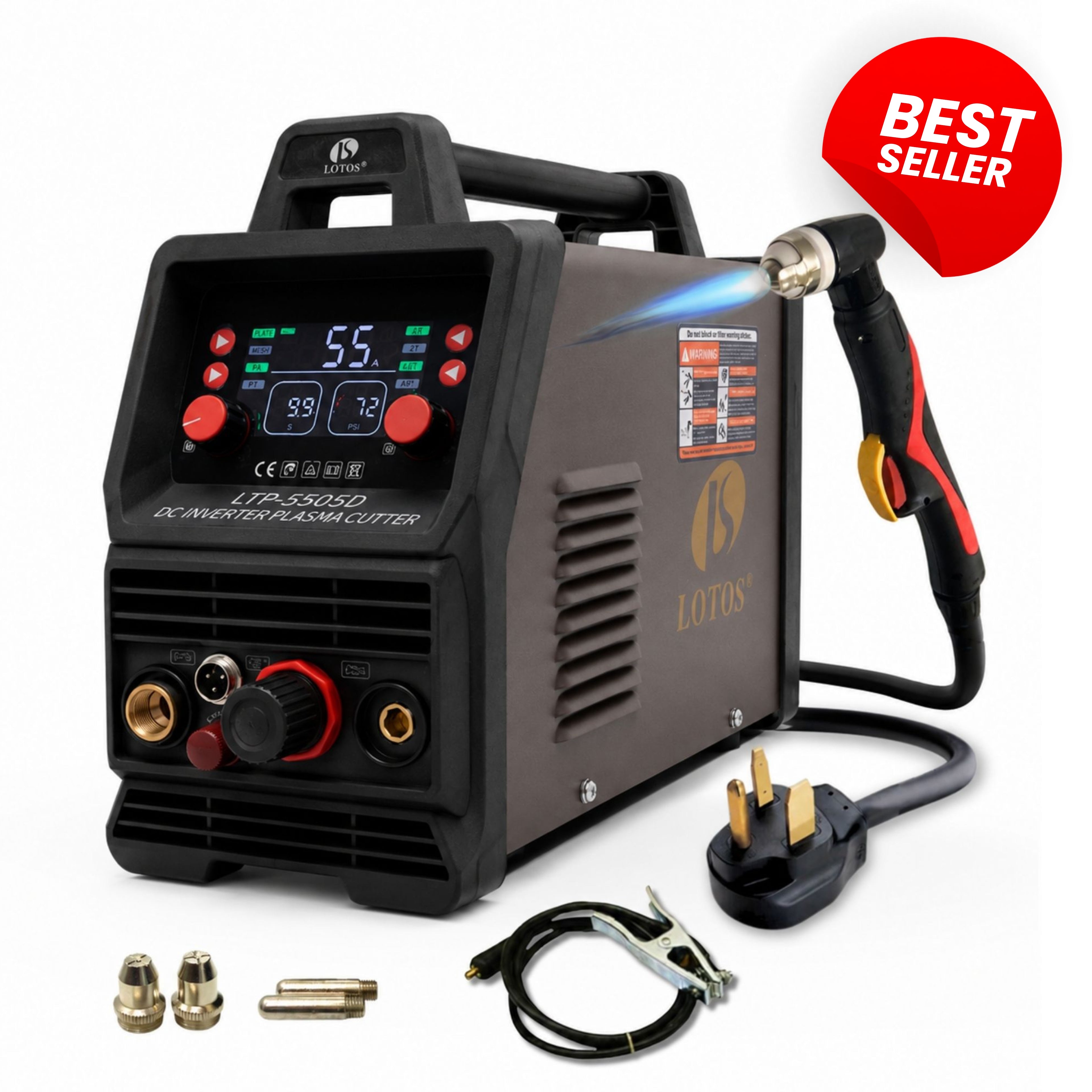

1 x LOTOS LTP5505D Plasma Cutter Power Supply
1 x Upgraded Non-Touch Pilot Arc Cutting Torch
1 x Heavy Duty Ground Clamp & Cable
1 x Pre-installed NPT 1/4” Industry Type D Plug
1 x Front-Mounted Air Filter Regulator
1 x Set of Consumables (Nozzles, Electrodes, Cups)
1 x User Manual

Why Choose LOTOS? (US-Based Support & Warranty)

We stand behind our products. Your purchase includes:

30-Day Money-Back Guarantee
1-Year New Replacement Warranty
3-Year Limited Warranty
Lifetime Technical Support directly from our dedicated US-based customer service team (available via phone and email).

(Note: Please submit the warranty registration form on our official website to activate your full coverage.)

My first experience - so - so.

So far the unit works as advertised. Out of the box however, it was not able to be plugged into a power outlet as the plug was a NEMA 10-50P and the adapter supplied required a NEMA 6-50. I called the support line which was very quick to answer and offer a solution. They requested I text my address and it sounded as if they were going to send an adapter or plug. Haven’t seen that yet.

Found my own plug and installed it and with a good test drive the unit worked well. Figured out the Aire pressure settings and the unit worked well. Documentation could use a significant enhancement but I was able to get it functioning well.

I test drove the unit on 110 and 220V. My first experience with a Plasma unit and it did what I needed.

Regards

Works Great

I had a red one for several years. In storage for a year and would not arc. Contacted Support with my issue, not really expecting too much help on a 6-7 year old machine. They promptly responded. We tried about a week to remedy the problem. They were even going to send me a free air solenoid but we found other issues. Determined it must be a circuit board, which is no longer available. They made it easy for me to order another one (Brown). It arrived promptly. Hooked it up and it works perfectly. I am a hobbyist and it suits my needs, 3/8" and smaller although I did cut some 1/2" to see and it worked, just not as smooth. I was very impressed with the customer service and would deal with them again.

5.0 out of 5 stars What the "instructions" don't tell you....

For the money this is a really good machine! Cuts nice, very easy to operate once you figure it out! The directions are very vague and incomplete.. we almost packed it up and sent it back because it wouldn't cut 3/8 steel BUT fortunately we found a youtube video that explained. The instructions just say to set your air compressor at 60-65lbs, but it DOESN'T tell you that you need to set the air on the machine itself to be 50-55lbs when you are operating the torch! We had our compressor at 65 but when you pull the trigger it dropped in the machine to 35 or so and it wouldn't cut well. Once we adjusted the machine to hold 50-55 it cuts GREAT!

5.0 out of 5 stars Great customer support!

Had an issue with the fan not working and after 3 years they still took care of it. I love a company that stands behind their products.

5.0 out of 5 stars NICE PRODUCT

EVERYTHING EXPECTED ANDC MORE CUTTS LIKE A DREAM VERY NICE UNIT AND EASY TO USE C UTS 1/2 IN WITH EASE
